The short answer

Compatible air compressors can feed a properly designed common system. That does not mean two portable outlets can be joined with a splitter and assumed to provide twice the usable air at a tool.

Quincy Compressor describes check valves, common piping and coordinated controls in its overview of networking compressors. Atlas Copco describes central controllers that sequence multiple machines and manage how they share demand. Both sources describe system components and control decisions, not permission to modify every consumer compressor.

What can be added on paper

If two compressor records publish the same field label and unit at the same pressure, their ratings can be summed as catalogue arithmetic:

Compressor One published rating Sum of two identical published ratings
California Air Tools 8010 2.2 CFM at 90 PSI 4.4 CFM at 90 PSI
Makita MAC2400 4.2 CFM at 90 PSI 8.4 CFM at 90 PSI
DEWALT DXCM201 6.2 CFM at 90 PSI 12.4 CFM at 90 PSI
DEWALT DXCMLA4708065 14 CFM at 90 PSI 28 CFM at 90 PSI

The third column is the sum of two published ratings. It is not a measured installed-system output. It excludes pressure drop, compressor duty cycle, control interaction, receiver behaviour and any derating required by the manufacturers.

The arithmetic can still rule out a pairing

Some gaps remain clear even before system losses are considered.

The DEWALT DXCMS20045US publishes 5 CFM at 90 PSI. Two identical ratings sum to 10 CFM at 90 PSI. The Ingersoll Rand 231C publishes 22 CFM under Air Consumption @ Load at 90 PSI. The two-compressor sum remains 12 CFM below that under-load field.

For a larger example, the DEWALT DXCMLA4708065 publishes 14 CFM at 90 PSI, so two ratings sum to 28 CFM. The Ingersoll Rand 99HL60H106 grinder publishes 84 CFM under load at 90 PSI. The sum remains 56 CFM below the grinder's published under-load field.

These comparisons do not prove what either installed system will deliver. They show that even the optimistic on-paper sum does not reach the selected tool field.

Why the installed result can be lower

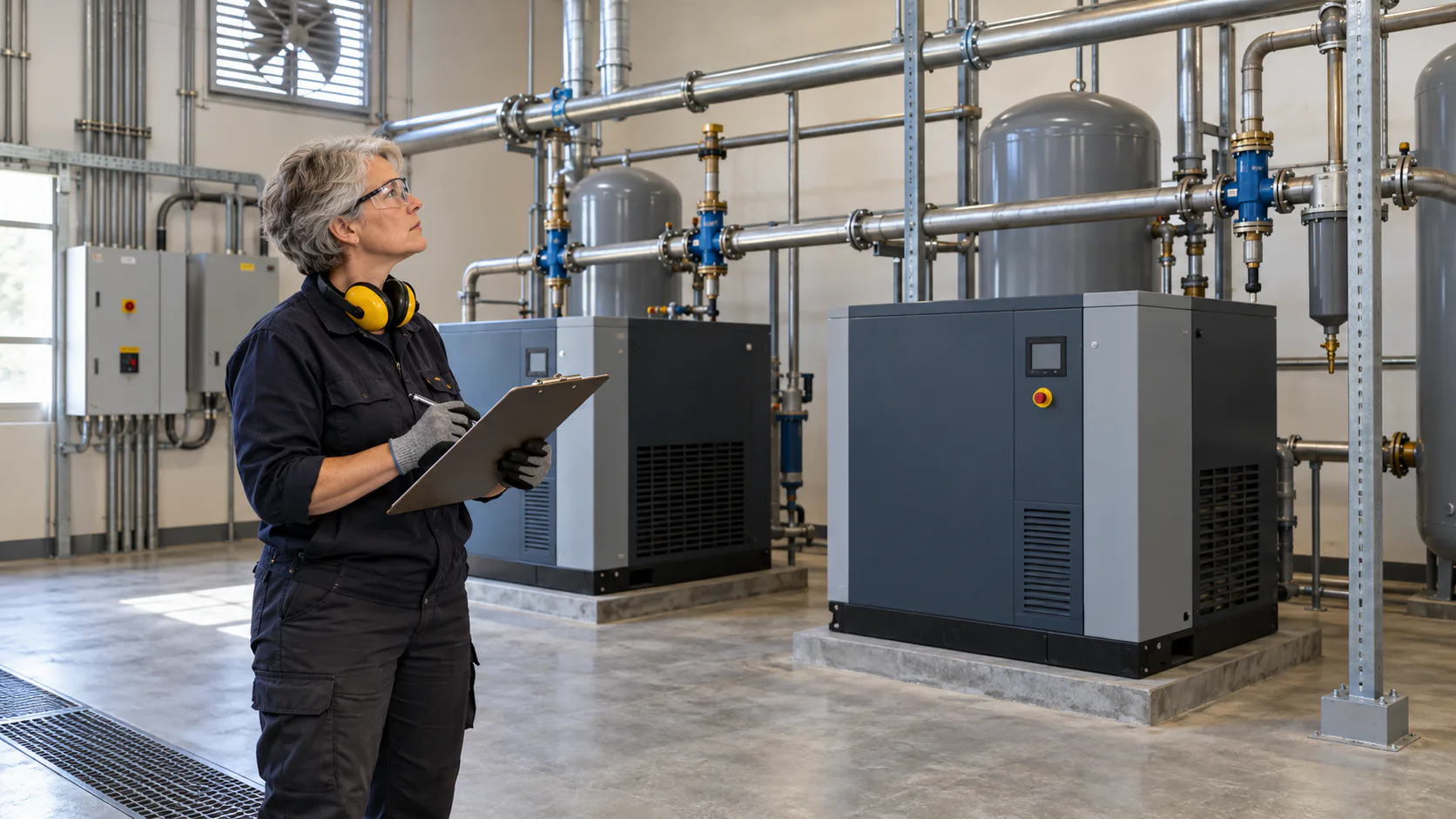

A shared system has more variables than the addition:

  • Pressure control: compressors can have different cut-in, cut-out and regulation behaviour.
  • Backflow prevention: a stopped or faulted machine must not become an unintended flow path.
  • Piping and receiver capacity: restrictions and storage affect pressure available during changing demand.
  • Sequencing and load sharing: one machine can carry too much of the operating time if the controls are poorly coordinated.
  • Duty cycle and temperature: each compressor retains its own permitted run-time and cooling limits.
  • Electrical supply: starting and running more than one motor must be checked against the exact equipment and installation.
  • Drainage and maintenance: a common system still needs access, isolation and service procedures for each component.

This is why the phrase “double your CFM” is incomplete. It describes a sum of two ratings, not the commissioned performance of a system.

Matched units are not the only possible design

Quincy's article warns that different capacities can create load imbalances and describes a coordinated approach for compressors sharing a system. That makes matched machines easier to reason about in its example.

Atlas Copco also documents central controls that sequence, load, unload or prioritize multiple compressors. Those systems may include different machines. Therefore, “always use identical compressors” is too broad, while “different sizes can simply be joined” is also too broad.

The correct question is whether the exact machines, controls and common air system were designed to work together.

Portable compressors need model-specific permission

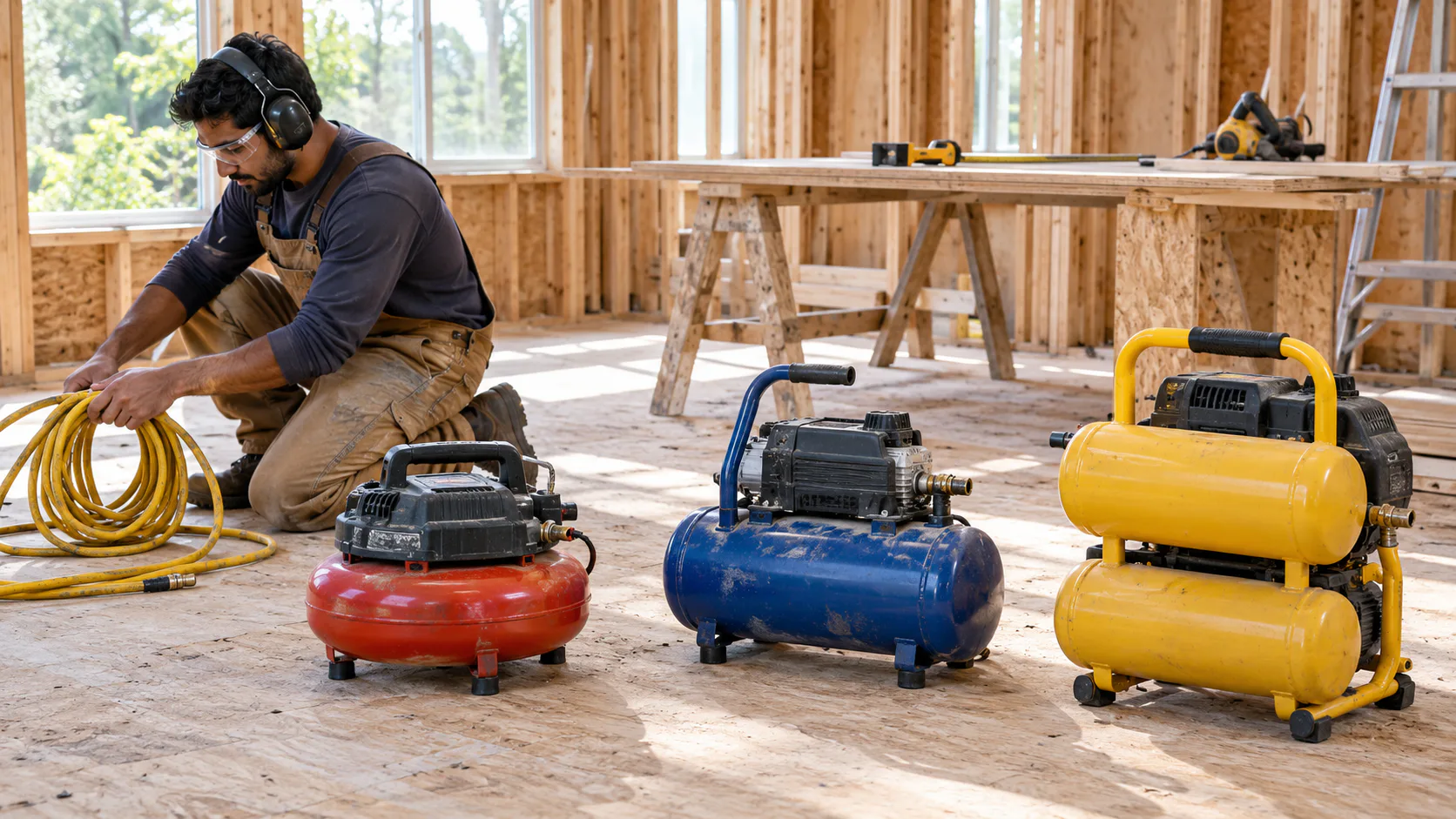

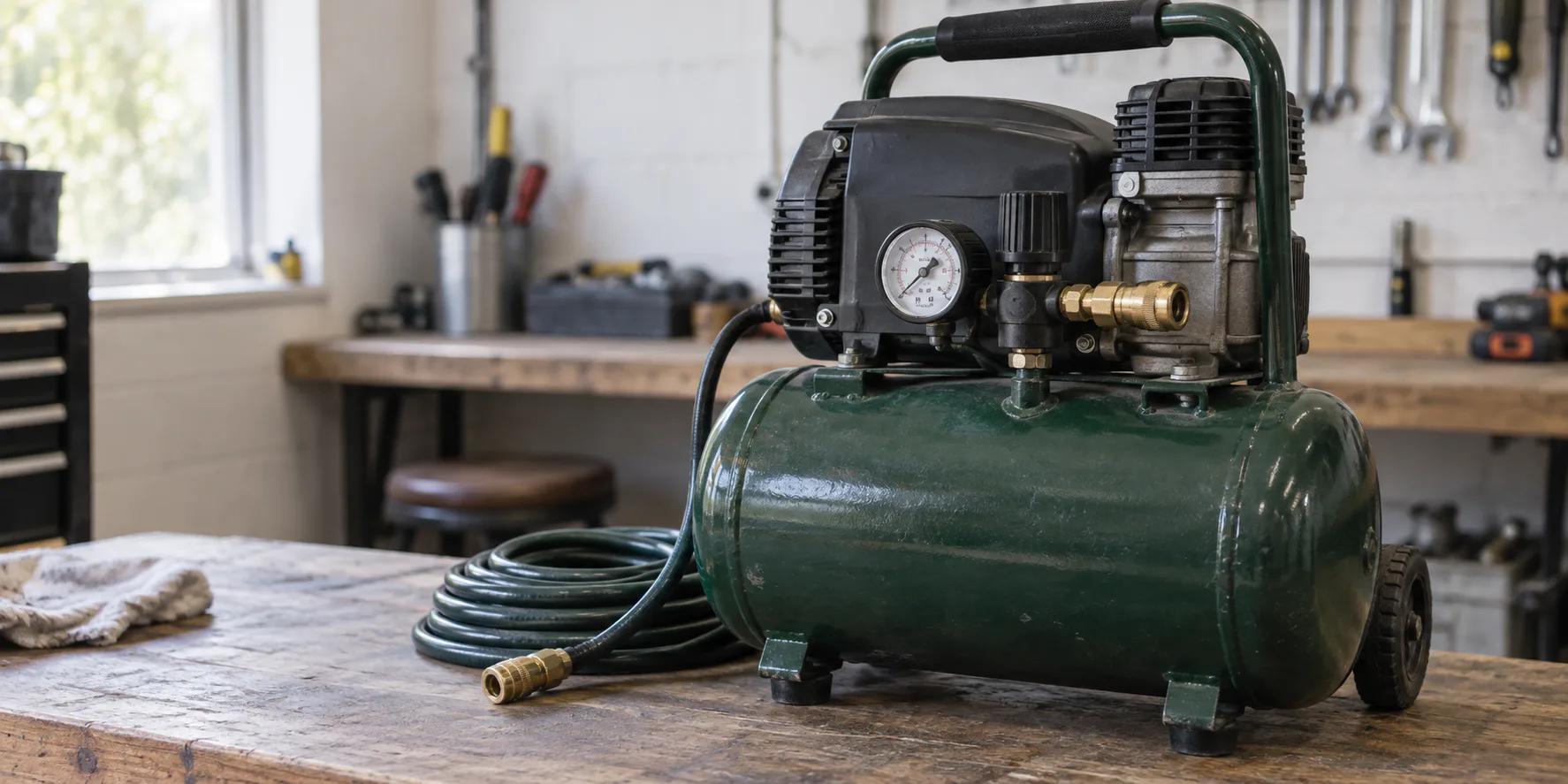

A portable compressor may have an outlet intended to feed a hose, not to accept pressure or flow from another receiver. Its pressure switch, relief protection, check valve, wiring and warranty conditions are model-specific.

Before buying a second portable unit, ask both manufacturers whether the proposed models may share a common air system and what approved connection and control equipment is required. If the manuals do not describe the arrangement, a generic T-fitting procedure from the web does not fill that gap.

Do not modify pressure switches, relief components, discharge plumbing or electrical wiring from an online article. Have a qualified compressed-air technician design and commission the system, and have a qualified electrician verify the supply.

What to calculate before buying compressor number two

  1. Identify the exact tool field, unit and pressure that governs the job.
  2. Record each compressor's delivery at that same pressure.
  3. Sum only compatible published fields and label the result as catalogue arithmetic.
  4. Compare that sum with the selected tool field before allowing for installed-system losses.
  5. Check each compressor's duty-cycle and environmental limits.
  6. Obtain manufacturer confirmation and a system design covering controls, protection, piping and electrical supply.

The matcher handles one compressor and one selected tool field. It does not model multiple compressors, shared receivers or control sequencing. The guide to finding a compressor's delivery rating helps locate the correct input before doing the two-unit sum.

Sources checked

Manufacturer documentation and installation rules can change. Verify the exact machines and proposed arrangement before any connection or modification.
